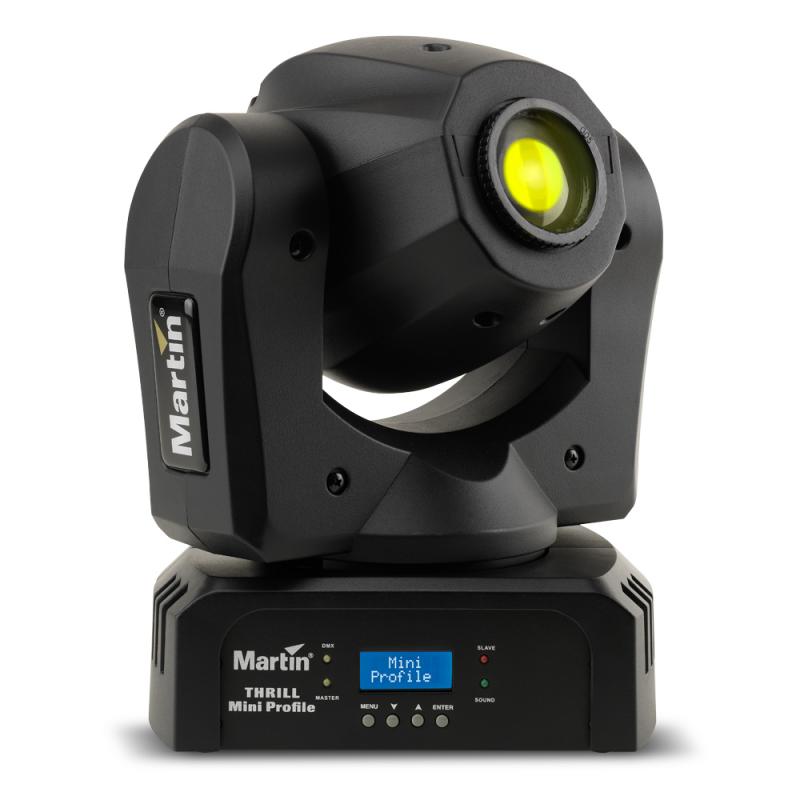

Thrill Mini Profile
- 18 W, white LED engine
- Dynamic effects include electronic dimming and strobe
- 8 static gobos for mid-air break-ups and projections
- 8 vibrant dichroic color filters
- Ultra-smooth and fast pan/tilt
- Easy to operate standalone sound-activated and master/slave control methods
- 4 professionally pre-programmed shows
- DMX operable for individualized control and design
- Includes bracket for hanging or surface mount
- Common IEC power mains inlet - mains cable included
Imagine having the ability to integrate the moving beams of light, shine spotlights when and where you need them, or add the dramatic effect of colors and “gobos” flying around the audience during your live shows. Now you can with the THRILL Mini Profile, Martin professional’s smallest and most affordable moving head to date. THRILL Mini Profile has been designed to help DJs, musicians and entertainers take their performances to the next level–whether they’re in lounge bar or pub, to a wedding or high-energy dance floor.
The THRILL Mini Profile delivers super-sharp optics with over 800 lumens of output via an 18 watt white LED engine. Eight varied gobos and eight vibrant colors are available, with electronic strobe/dimming, manual focus and high-speed pan and tilt. The eye-catching effects can be synchronized to a music beat via audio trigger or run from the four pre-programmed shows. For more custom control options, it can also be operated via DMX.
Despite performing above its class, this ultra-compact fixture weighs only 4.3 kg (9.5 lb.), so it’s easy to transport and set up. Its lightweight design, rugged exterior, and compact form factor make THRILL Mini Profile the perfect fit for on-the-go entertainers, DJs, venues and home enthusiasts that require professional, lighting within their reach.
- Portable, lightweight and easy to control
- Profile-style fixture for gobo projection
- Super sharp optics and powerful LED engine punch above its class
PhysicalLength: 237 mm (9.3 in.)Width: 155 mm (6.1 in.)Height: 338 mm (13.3 in.)Height with hanging bracket: 362 mm (14.25 in.)Weight: 4.3 kg (9.5 lbs.)
Dynamic EffectsColor wheel: 8 colors plus open, variable and random rotationStatic gobo wheel (stamped): 8 static gobos plus open, variable and random rotationStrobe: Variable from 3 - 20 Hz, pulse effects and random strobeElectronic dimming: 0 - 100%, four dimming curve optionsPan: 540°Tilt: 230°
Control and ProgrammingControl options: DMX, 4 stand-alone shows, master/slaveDMX channels: 10Stand-alone trigger: Sound-trigger, auto-runUser Interface: Control panel with backlit LCD displayDMX compliance: ANSI E1.11 - USITT DMX512-A
OpticsLight source: 18 W white LED engineMinimum LED lifetime: 50 000 hours (to >70% luminous output)*Beam angle: 14°Focus: Manual*Figure obtained under manufacturer's test conditions
ConstructionColor: BlackHousing: High-impact flame-retardant thermoplastic on metal frameIP rating: IP 20
>span class="specContent">Orientation: Standing or hangingMounting points: Bracket for single rigging clamp, M12 or ½”Location: Dry location onlyMinimum distance to illuminated surfaces: 200 mm (8 in.)Minimum distance to combustible materials: 100 mm (4 in.)Minimum clearance around fans and vents: 100 mm (4 in.)

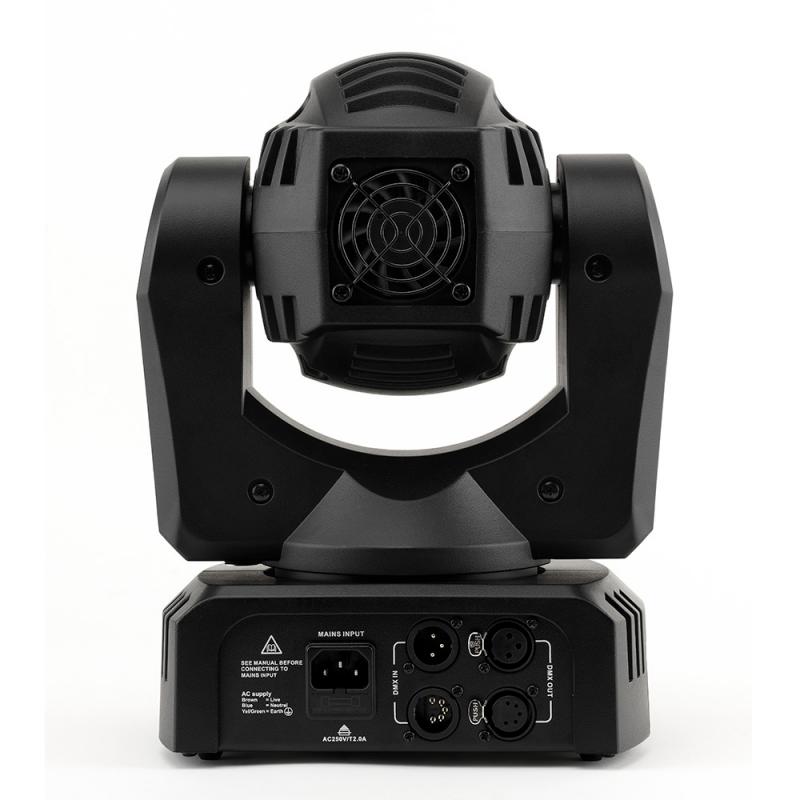

ConnectionsAC power input: IEC male inlet, C14DMX data in/out: 3-pin and 5-pin locking XLR
ElectricalAC power: 100-240 V nominal, 50/60 HzFuse: Fuse: T 2.0 A, 250 V
Typical Power and Current120 V, 60 Hz: 52 W, 0.9 A230 V, 50 Hz: 50 W, 0.4 ATypical half-cycle RMS inrush current: 6.4 AMeasurements made at nominal voltage with all LEDs at full intensity. Allow for a deviation of +/- 10%.
>span class="specContent">Cooling: Forced air (temperature-regulated, low noise)Maximum ambient temperature (Ta max.): 40° C (104° F)Minimum ambient temperature (Ta min.): 0° C (32° F)Total heat dissipation (calculated, +/- 10%, at full intensity, full white): 180 BTU/hr.
ApprovalsEU safety: EN 60598-2-17, EN 61000-3-3, EN 62471, EN 62493EU EMC: EN 55015, EN 55032, EN 55103-2, EN 61000-3-2, EN 61547US safety: UL 1573US EMC: CFR Title 47 Part 15 Class ACanadian safety: CSA C22.2 No. 166Canadian EMC: ICES-003 Class AAustralia/NZ (pending): RCM
Included ItemsPower cable, EU, IEC C13 female, molded Schuko, 1.9 m (6.3 ft.)Power cable, US, IEC C13 female, molded NEMA 5-15P, 1.9 m (6.3 ft.)Bracket and hardware for rigging clamp attachment
Accessories>span class="specContent">Super lightweight half coupler, black: P/N 91602018Safety cable, SWL 60 kg (132 lb.), BGV C1/ DGUV 17, black: P/N 91604006
